linux+rtos系统如何适配linux小核屏幕驱动

Viewed 111
linux_rtos k230

我希望使用小核运行lvgl对大核程序进行控制，运行小核lvgldemo的时候发现linux下的屏幕没有做适配，查看dts发现几乎所有的dts都用的是hx8399作为dsi的显示，但是现在市面上的开发板配套的屏幕都没有hx8399，我应该如何去适配一个自己的屏幕。可以的话我希望能够适配自己的第三方的屏幕，已经在大核上调通能用点亮运行。linux下的适配遇到了困难。

软硬件版本信息

立创庐山派，linux+rt-smart双系统。

错误日志

尝试解决过程

补充材料


kd_jyj1
2 Answers

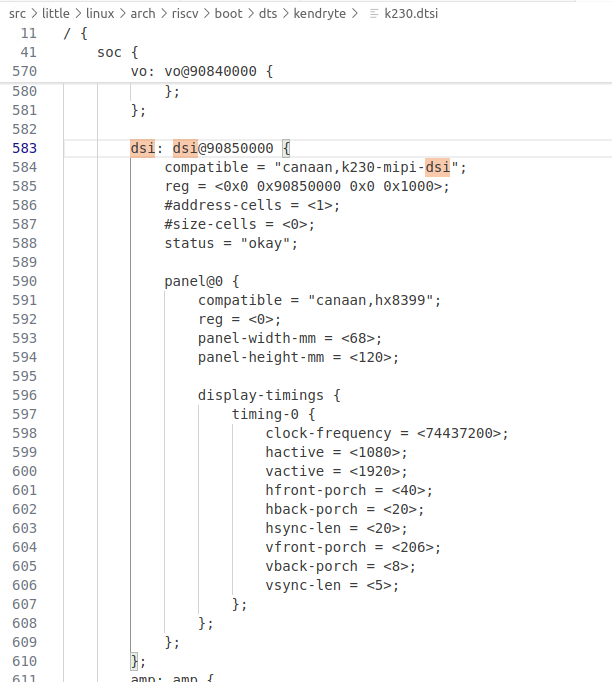

image.png 有的、年可以在看一下

zhao11

你好，我用的是linux+rt-smart的双系统sdk，没有找到类似的文件

kd_jyj•

你好，我确实找不到相关的dtsi，我使用的是linux+rt-smart的双系统sdk，麻烦您再帮我查看一下？

kd_jyj•

linux+rt-smart系统下的sdk就是没有

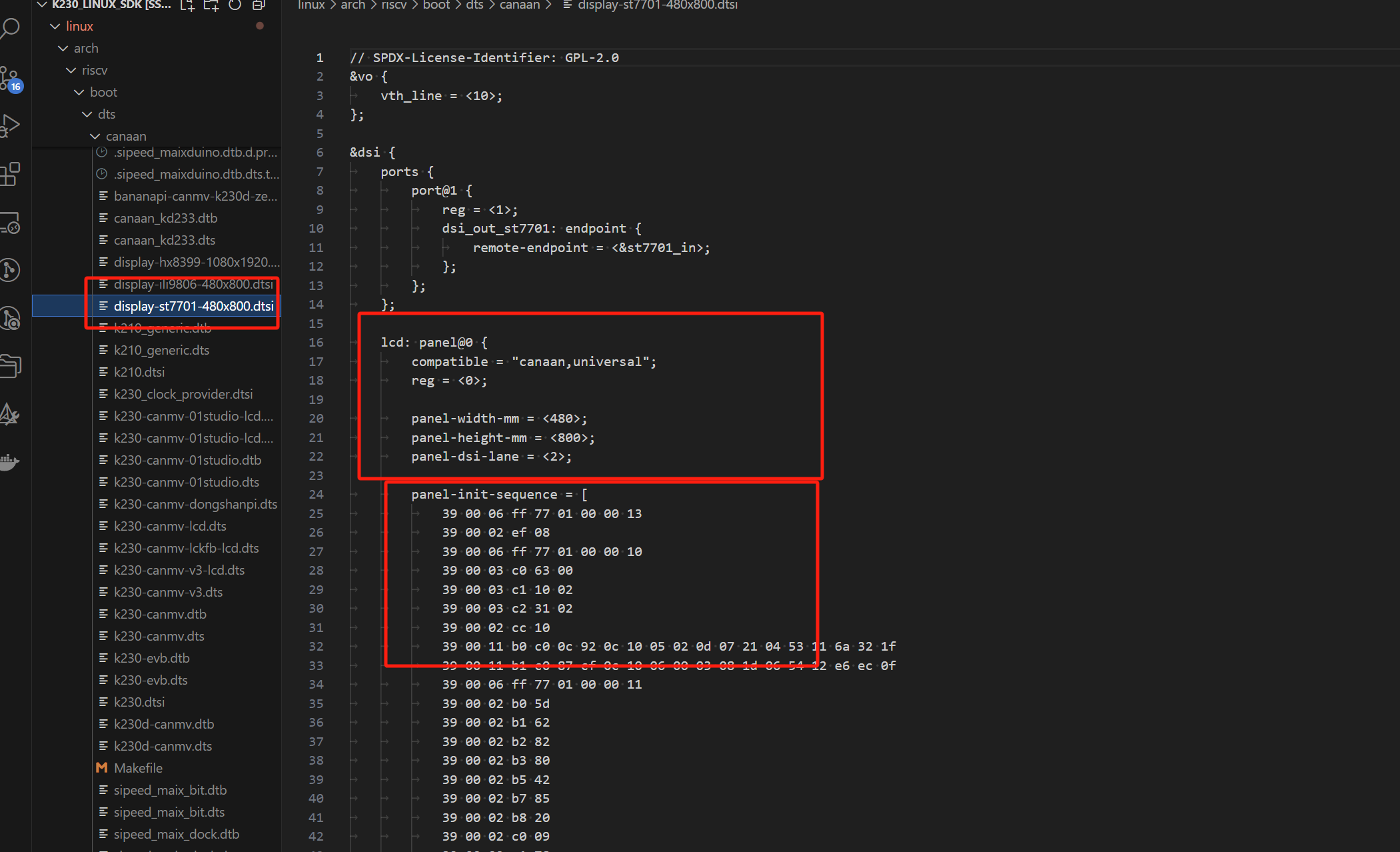

这个驱动要自己添加，放到这个路径下/home/k230_sdk/src/little/linux/arch/riscv/boot/dts/kendryte/display_st7701_480*800.dtsi

&vo {
    vth_line = <10>;
};

&dsi {
    status = "okay";
    ports {
        port@1 {
            reg = <1>;
            dsi_out_st7701: endpoint {
                remote-endpoint = <&st7701_in>;
            };
        };
    };

    lcd: panel@0 {
        status = "okay";
        compatible = "canaan,st7701";
        reg = <0>;

        panel-width-mm = <480>;
        panel-height-mm = <800>;
        panel-dsi-lane = <2>;

        panel-init-sequence = [
            39 00 06 ff 77 01 00 00 13
            39 00 02 ef 08
            39 00 06 ff 77 01 00 00 10
            39 00 03 c0 63 00
            39 00 03 c1 10 02
            39 00 03 c2 31 02
            39 00 02 cc 10
            39 00 11 b0 c0 0c 92 0c 10 05 02 0d 07 21 04 53 11 6a 32 1f
            39 00 11 b1 c0 87 cf 0c 10 06 00 03 08 1d 06 54 12 e6 ec 0f
            39 00 06 ff 77 01 00 00 11
            39 00 02 b0 5d
            39 00 02 b1 62
            39 00 02 b2 82
            39 00 02 b3 80
            39 00 02 b5 42
            39 00 02 b7 85
            39 00 02 b8 20
            39 00 02 c0 09
            39 00 02 c1 78
            39 00 02 c2 78
            39 00 02 d0 88
            39 ff 02 ee 42
            39 00 04 e0 00 00 02
            39 00 0c e1 04 a0 06 a0 05 a0 07 a0 00 44 44
            39 00 0d e2 00 00 33 33 01 a0 00 00 01 a0 00 00
            39 00 05 e3 00 00 33 33
            39 00 03 e4 44 44
            39 00 11 e5 0c 30 a0 a0 0e 32 a0 a0 08 2c a0 a0 0a 2e a0 a0
            39 00 05 e6 00 00 33 33
            39 00 03 e7 44 44
            39 00 11 e8 0d 31 a0 a0 0f 33 a0 a0 09 2d a0 a0 0b 2f a0 a0
            39 00 08 eb 00 01 e4 e4 44 88 00
            39 00 11 ed ff f5 47 6f 0b a1 a2 bf fb 2a 1a b0 f6 74 5f ff
            39 00 07 ef 08 08 08 40 3f 64
            39 00 06 ff 77 01 00 00 13
            39 00 03 e8 00 0e
            39 00 06 ff 77 01 00 00 00
            39 ff 01 11
            39 00 06 ff 77 01 00 00 13
            39 ff 03 e8 00 0c
            39 00 03 e8 00 00
            39 00 06 ff 77 01 00 00 00
            39 00 02 3a 50
            39 ff 01 29
        ];

        display-timings {
            timing-0 {
                clock-frequency = <39600000>;
                hactive = <480>;
                vactive = <800>;
                hfront-porch = <80>;
                hback-porch = <20>;
                hsync-len = <20>;
                vfront-porch = <220>;
                vback-porch = <70>;
                vsync-len = <10>;
            };
        };

        ports {
            #address-cells = <1>;
            #size-cells = <0>;

            port@0 {
                reg = <0>;
                st7701_in: endpoint {
                    remote-endpoint = <&dsi_out_st7701>;
                };
            };
        };
    };
};

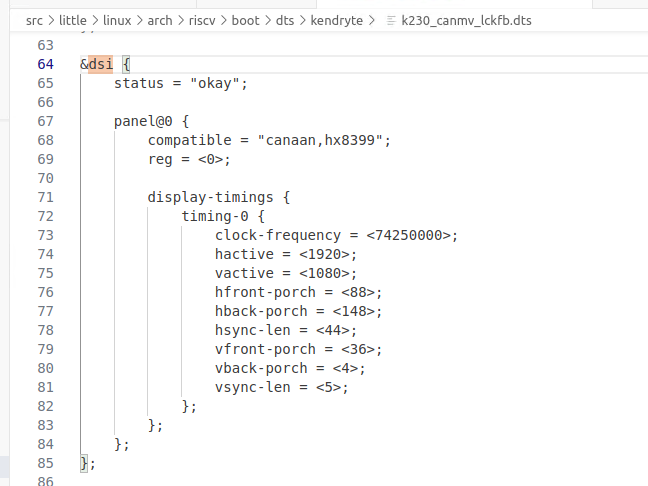

k230_canmv_lckfb.dts这个文件内也要改

/* Copyright (c) 2023, Canaan Bright Sight Co., Ltd
 *
 * This program is free software; you can redistribute it and/or modify
 * it under the terms of the GNU General Public License version 2 as
 * published by the Free Software Foundation.
*/
#include "k230.dtsi"
#include "clock_provider.dtsi"          /* k230 soc clock tree */
#include "clock_consumer.dtsi"          /* k230 soc clock consumer */
#include "reset_provider.dtsi"          /* k230 soc reset provider */
#include "reset_consumer.dtsi"          /* k230 soc reset consumer */
#include "power_provider.dtsi"          /* k230 soc power provider */
#include "power_consumer.dtsi"          /* k230 soc power consumer */
#include "gpio_provider.dtsi"           /* k230 soc gpio provider */
#include "gpio_consumer.dtsi"           /* k230 soc gpio consumer */
#include "display_st7701_480*800.dtsi"


/ {
	aliases {
		serial0 = &uart0;
	};

	chosen {
		bootargs = "";
		linux,initrd-start = <0x0 0xa100000>;
		linux,initrd-end = <0x0 0x0>;
		stdout-path = "serial0:115200";
	};

	sound {
		status                      = "disable";
		compatible                  = "canaan,k230-audio-inno";
		canaan,model                = "CANAAN_K230_I2S_INNO";
		canaan,k230-i2s-controller  = <&i2s>;
		canaan,k230-audio-codec     = <&inno_codec>;
	};
};
&ddr {
	reg = <0x0 0x8200000 0x0 0x7dff000>;  /*linux memory config*/
};

&usbotg0 {
	status = "okay";
};

&usbotg1 {
	dr_mode = "host";
	status = "okay";
};

&mmc_sd0{
    status = "okay";
    rx_delay_line = <0x0d>;
    tx_delay_line = <0xc0>;
};

&mmc_sd1{
    status = "okay";
    no-1-8-v;
    cap-sd-highspeed;
    mshc_ctrl_r = <0x00>;
};

/*&dsi {
    status = "okay";

    panel@0 {
        compatible = "canaan,hx8399";
        reg = <0>;

        display-timings {
            timing-0 {
                clock-frequency = <74250000>;
                hactive = <1920>;
                vactive = <1080>;
                hfront-porch = <88>;
                hback-porch = <148>;
                hsync-len = <44>;
                vfront-porch = <36>;
                vback-porch = <4>;
                vsync-len = <5>;
            };
        };
    };
};*/

&uart0 {
	status = "okay";
};

/home/k230_sdk/src/little/linux/drivers/gpu/drm/panel/panel-canaan-universal.c这个路径下的这个.c文件也要改

// SPDX-License-Identifier: GPL-2.0-only
/*
 * Copyright (C) 2022, Canaan Bright Sight Co., Ltd
 *
 * All enquiries to https://www.canaan-creative.com/
 *
 */

#include <linux/delay.h>
#include <linux/device.h>
#include <linux/err.h>
#include <linux/errno.h>
#include <linux/fb.h>
#include <linux/kernel.h>
#include <linux/module.h>
#include <linux/of_device.h>

#include <linux/gpio/consumer.h>
#include <linux/regulator/consumer.h>

#include <drm/drm_mipi_dsi.h>
#include <drm/drm_modes.h>
#include <drm/drm_panel.h>

#include <video/mipi_display.h>
#include <video/of_videomode.h>
#include <video/videomode.h>


struct canaan_panel_instr {
	char cmd;
	char data;
};

struct canaan_panel_desc {
	const struct canaan_panel_instr *init;
	const size_t init_length;
	//const struct drm_display_mode *mode;
};

struct canaan_panel {
	struct drm_panel	panel;
	struct mipi_dsi_device	*dsi;
	const struct canaan_panel_desc	*desc;

	struct regulator	*power;
	struct gpio_desc	*reset;
	struct videomode vm;
	u32 width_mm;
	u32 height_mm;
};


static const struct canaan_panel_instr hx8399_init[] = {

};

static const struct canaan_panel_instr st7701_init[] = {
       // 填写你的 ST7701 初始化命令
   };

static inline struct canaan_panel *panel_to_canaan_panel(struct drm_panel *panel)
{
	return container_of(panel, struct canaan_panel, panel);
}

static int canaan_panel_prepare(struct drm_panel *panel)
{
	return 0;
}

static int canaan_panel_enable(struct drm_panel *panel)
{
	return 0;
}

static int canaan_panel_disable(struct drm_panel *panel)
{
	return 0;
}

static int canaan_panel_unprepare(struct drm_panel *panel)
{
	return 0;
}

static int canaan_panel_get_modes(struct drm_panel *panel,
			      struct drm_connector *connector)
{
	struct canaan_panel *ctx = panel_to_canaan_panel(panel);
	struct drm_display_mode *mode;

	mode = drm_mode_create(connector->dev);
	if (!mode) {
		dev_err(panel->dev, "failed to create a new display mode\n");
		return 0;
	}

	drm_display_mode_from_videomode(&ctx->vm, mode);
	mode->width_mm = ctx->width_mm;
	mode->height_mm = ctx->height_mm;
	connector->display_info.width_mm = mode->width_mm;
	connector->display_info.height_mm = mode->height_mm;

	mode->type = DRM_MODE_TYPE_DRIVER | DRM_MODE_TYPE_PREFERRED;
	drm_mode_probed_add(connector, mode);

	return 1;
}

static const struct drm_panel_funcs canaan_panel_funcs = {
	.prepare	= canaan_panel_prepare,
	.unprepare	= canaan_panel_unprepare,
	.enable		= canaan_panel_enable,
	.disable	= canaan_panel_disable,
	.get_modes	= canaan_panel_get_modes,
};

static int canaan_panel_parse_dt(struct canaan_panel *ctx)
{
	struct device *dev = &ctx->dsi->dev;
	struct device_node *np = dev->of_node;
	int ret;

	ret = of_get_videomode(np, &ctx->vm, 0);
	if (ret < 0)
		return ret;

	of_property_read_u32(np, "panel-width-mm", &ctx->width_mm);
	of_property_read_u32(np, "panel-height-mm", &ctx->height_mm);

	return 0;
}

static int canaan_panel_dsi_probe(struct mipi_dsi_device *dsi)
{
	struct canaan_panel *ctx;
	int ret;

	ctx = devm_kzalloc(&dsi->dev, sizeof(*ctx), GFP_KERNEL);
	if (!ctx)
		return -ENOMEM;
	mipi_dsi_set_drvdata(dsi, ctx);
	ctx->dsi = dsi;
	ctx->desc = of_device_get_match_data(&dsi->dev);

	ret = canaan_panel_parse_dt(ctx);
	if (ret < 0)
		return ret;

	// Panel Device Tree Read..

	dsi->mode_flags = MIPI_DSI_MODE_VIDEO_SYNC_PULSE;
	dsi->format = MIPI_DSI_FMT_RGB888;
	dsi->lanes = 4;

	drm_panel_init(&ctx->panel, &dsi->dev, &canaan_panel_funcs,
		       DRM_MODE_CONNECTOR_DSI);

	drm_panel_add(&ctx->panel);

	ret = mipi_dsi_attach(dsi);
	if (ret) {
		drm_panel_remove(&ctx->panel);
	}

	return ret;
}

static int canaan_panel_dsi_remove(struct mipi_dsi_device *dsi)
{
	struct canaan_panel *ctx = mipi_dsi_get_drvdata(dsi);

	mipi_dsi_detach(dsi);
	drm_panel_remove(&ctx->panel);

	return 0;
}

static const struct canaan_panel_desc hx8399_desc = {
	// .init = hx8399_init,
	// .init_length = ARRAY_SIZE(hx8399_init),
	// .mode = &hx8399_default_mode,
};

static const struct canaan_panel_desc st7701_desc = {
    //   .init = st7701_init,
    //   .init_length = ARRAY_SIZE(st7701_init),
   };


static const struct of_device_id canaan_panel_of_match[] = {
	{ .compatible = "canaan,hx8399", .data = &hx8399_desc },
	{ .compatible = "canaan,st7701", .data = &st7701_desc },
	{ }
};
MODULE_DEVICE_TABLE(of, canaan_panel_of_match);

static struct mipi_dsi_driver canaan_panel_driver = {
	.probe		= canaan_panel_dsi_probe,
	.remove		= canaan_panel_dsi_remove,
	.driver = {
		.name		= "canaan-panel-dsi",
		.of_match_table	= canaan_panel_of_match,
	},
};
module_mipi_dsi_driver(canaan_panel_driver);

MODULE_AUTHOR("");
MODULE_DESCRIPTION("Canaan K230 Panel Driver");
MODULE_LICENSE("GPL");

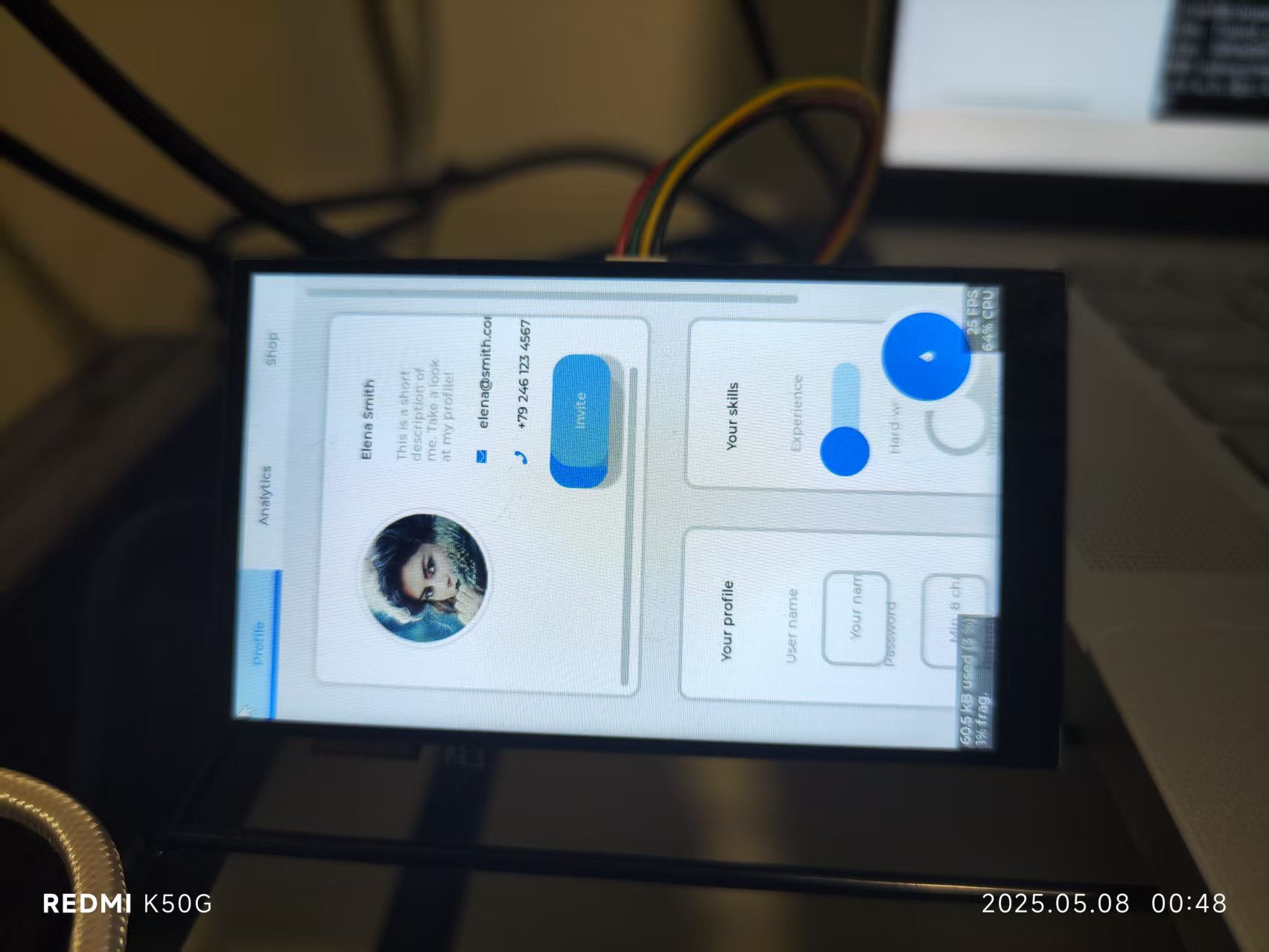

这样就可以点亮了，横屏应该换一下宽跟高应该就可以了吧，没试过，不过要注意加了这个只是显示可以了，触摸就没有，应该得额外整
