问题描述
【代码】我参考 reference\ai_poc\dec_ai_enc\dec_enc\dec_enc.cc 代码，去掉ai和编码部分，仅保留解码部分代码。

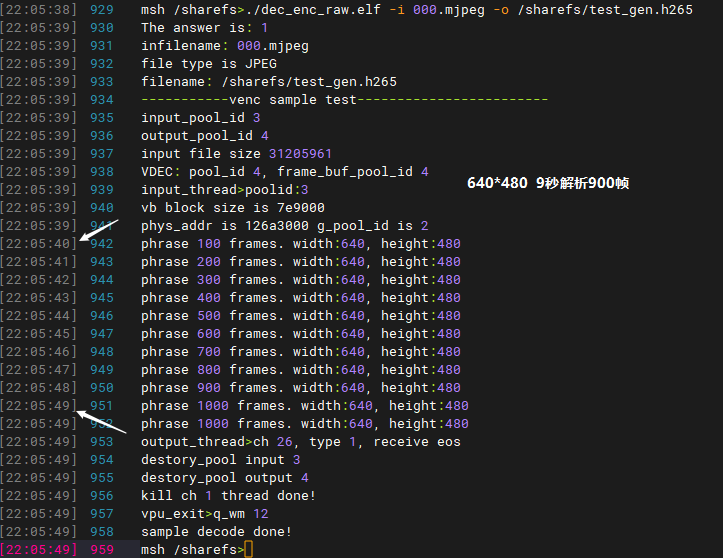

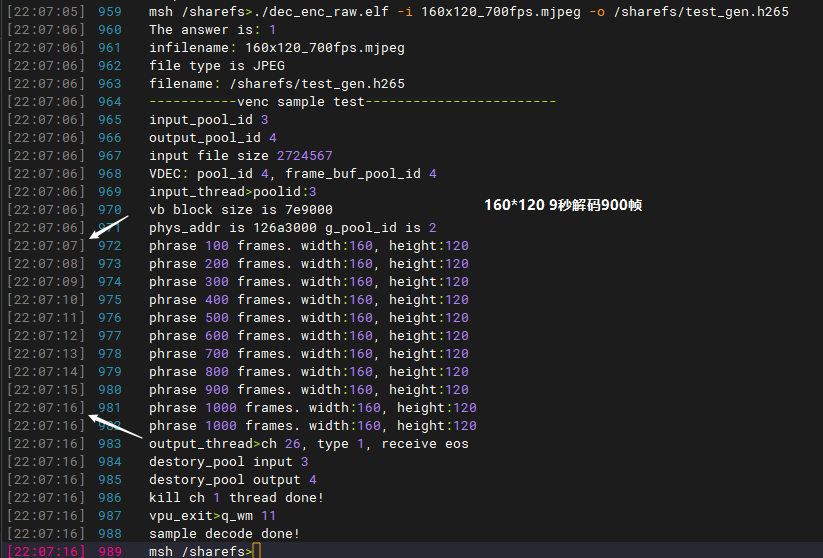

【操作步骤】分别解码640480和160120分辨率的mjpeg格式视频，发现两种分辨率下均为约100帧每秒的解码速度。
【需求】
可否在你们的开发板上验证一下解码速度
【疑问】
1、160*120分辨率下100帧每秒的解码速度与k230芯片手册1.2.9节相差很大。手册中为 20MBit/s。如何调整能接近芯片的理论解码速度
2、为何两种分辨率下解码速度接近
复现步骤
执行命令示例为：
./dec_enc.elf -i 160x120_700fps.mjpeg -o /sharefs/test_gen.h265
代码更新后命令示例为：
./dec_enc_raw.elf -i 160x120_700fps.mjpeg
硬件板卡
CanMV-K230-LP4 V3.0
其他信息
代码及视频文件见 https://github.com/gdyshi/k230_dec_enc
如果还需要其他信息，请提出。我会尽量提供
其他信息
代码及视频文件见 https://github.com/gdyshi/k230_dec_enc
如果还需要其他信息，请提出。我会尽量提供
其他信息
代码及视频文件见 https://github.com/gdyshi/k230_dec_enc
如果还需要其他信息，请提出。我会尽量提供
其他信息
代码及视频文件见 https://github.com/gdyshi/k230_dec_enc
如果还需要其他信息，请提出。我会尽量提供
其他信息
代码及视频文件见 https://github.com/gdyshi/k230_dec_enc
如果还需要其他信息，请提出。我会尽量提供
其他信息
代码及视频文件见 https://github.com/gdyshi/k230_dec_enc
如果还需要其他信息，请提出。我会尽量提供
其他信息
代码及视频文件见 https://github.com/gdyshi/k230_dec_enc
如果还需要其他信息，请提出。我会尽量提供
其他信息
代码及视频文件见 https://github.com/gdyshi/k230_dec_enc
其他信息
