SPI_LCD Module API Manual

Overview

The SPI_LCD module provides interfaces for interacting with LCD displays via the SPI bus, including screen initialization, drawing, text display, and other operations.

API Introduction

Constructor

SPI_LCD(spi: SPI, dc: Pin, cs: Pin = None, rst: Pin = None, bl: Pin = None, type: int = SPI_LCD.ST7789)

Initialize a SPI_LCD object, creating a connection with the specified SPI bus and pins.

Parameters:

• spi: SPI object, used to communicate with the LCD.

• dc: Data/Command control pin.

• cs: (Optional) Chip select pin. It is strongly recommended to use software CS.

• rst: (Optional) Reset pin.

• bl: (Optional) Backlight pin.

• type: LCD type (e.g., SPI_LCD.ST7789).

Returns:

• SPI_LCD object.

configure Method

lcd.configure(width, height, hmirror=False, vflip=False, bgr=False)

Configure the basic parameters of the LCD display.

Parameters:

• width: Screen width.

• height: Screen height.

• hmirror: (Optional) Whether to enable horizontal mirroring, default is False.

• vflip: (Optional) Whether to enable vertical flipping, default is False.

• bgr: (Optional) Whether to enable BGR color format. When True, the screen is set to BGR565; when False, the screen is set to RGB565. Default is False.

Returns:

• No return value.

Note

Module parameters must be configured before init.

init Method

lcd.init(custom_command=False)

Initialize the LCD screen.

Parameters:

• custom_command: (Optional) Default is False, which automatically sends commands to initialize the screen (HD24019C18). If True, the user needs to use command to initialize the screen.

Returns:

• img: Image object, which the user can use as a buffer for image drawing operations.

command Method

lcd.command(cmd, data)

Send a command to the LCD.

Parameters:

• cmd: The command to send.

• data: The data to transmit.

Returns:

• No return value.

deinit Method

lcd.deinit()

Shut down and release the LCD display.

Returns:

• No return value.

Display Size Retrieval Methods

lcd.width()

Get the width of the LCD.

Returns:

• The width value.

lcd.height()

Get the height of the LCD.

Returns:

• The height value.

Display Direction and Properties

lcd.hmirror()
lcd.vflip()
lcd.bgr()

These methods return whether horizontal mirroring, vertical flipping, and BGR color format are enabled, respectively.

Pass True or False as a parameter to set the property; if no parameter is passed, the current configuration is returned.

get_direction Method

lcd.get_direction()

Get the current configured direction register value, usually 0x36.

Returns:

• The value of the direction register.

Backlight Control

lcd.light(value)

Sets the LCD backlight brightness.

Parameters:

• value: Brightness value (0-100).

Returns:

• No return value.

Pixel Operations

lcd.get(x,y)

Gets the pixel value at the specified position.

lcd.set(x, y, color)
lcd.pixel(x, y, color)

Draws a pixel at the specified position.

get, set, and pixel all operate on the Image returned by init, and show must be called to display it on the screen.

Parameters:

• x, y: Coordinates of the pixel.

• color: Color of the pixel.

Returns:

• No return value.

Screen Fill

lcd.fill(color)

Fills the entire screen with the specified color.

fill operates on the Image returned by init, and show must be called to display it on the screen.

Parameters:

• color: Fill color.

Returns:

• No return value.

Image Display

lcd.show(img=None, x = 0, y = 0)
lcd.show_image(img=None, x = 0, y = 0)

Displays an image on the LCD. If img is not passed, the internal image buffer will be displayed.

Parameters:

• img: (Optional) The image object to be displayed.

• x: (Optional) The starting coordinate for displaying the image.

• y: (Optional) The starting coordinate for displaying the image.

Returns:

• No return value.

Screen Type

SPI_LCD.ST7789: ST7789 controller, 4-wire SPI interface

Example Code

Display characters on the screen

import time, image
from machine import FPIOA, Pin, SPI, SPI_LCD

fpioa = FPIOA()

# Use gpio 19 to connect to the screen cs pin
fpioa.set_function(19, FPIOA.GPIO19)
pin_cs = Pin(19, Pin.OUT, pull=Pin.PULL_NONE, drive=15)
pin_cs.value(1)

# Use gpio 20 to connect to the screen dc pin
fpioa.set_function(20, FPIOA.GPIO20)
pin_dc = Pin(20, Pin.OUT, pull=Pin.PULL_NONE, drive=15)
pin_dc.value(1)

# Use gpio 44 to connect to the screen reset pin
fpioa.set_function(44, FPIOA.GPIO44, pu = 1)
pin_rst = Pin(44, Pin.OUT, pull=Pin.PULL_UP, drive=15)

# spi
fpioa.set_function(15, fpioa.QSPI0_CLK) # scl
fpioa.set_function(16, fpioa.QSPI0_D0) # mosi

spi1 = SPI(1,baudrate=1000*1000*50, polarity=1, phase=1, bits=8)

lcd = SPI_LCD(spi1, pin_dc, pin_cs, pin_rst)

lcd.configure(320, 240, hmirror = False, vflip = True, bgr = False)

print(lcd)

img = lcd.init()
print(img)

img.clear()
img.draw_string_advanced(0,0,32, "RED, 你好世界~", color = (255, 0, 0))
img.draw_string_advanced(0,40,32, "GREEN, 你好世界~", color = (0, 255, 0))
img.draw_string_advanced(0,80,32, "BLUE, 你好世界~", color = (0, 0, 255))

lcd.show()

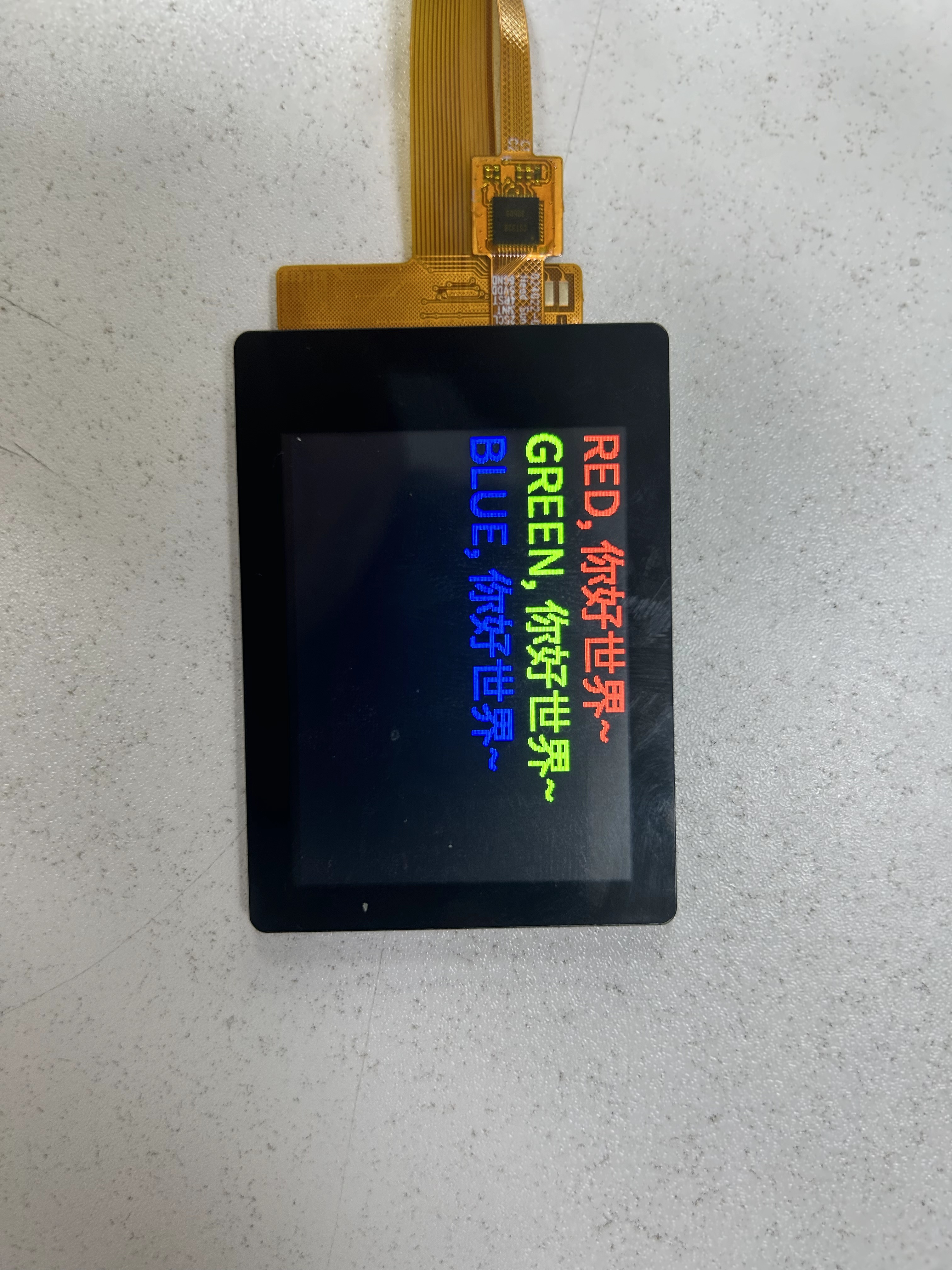

This example will display the 你好世界~ string in red, green, and blue colors on the screen
